Guard Rails

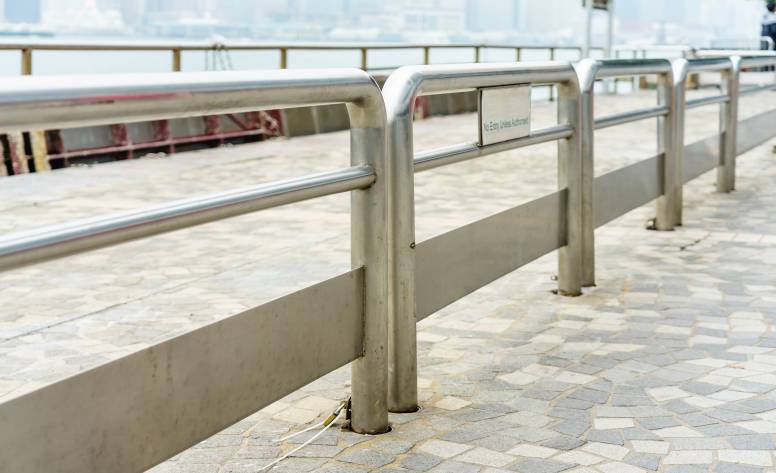

Guard rails, often referred to as safety barriers or guard fences, are structures designed to prevent vehicles, pedestrians, or other objects from inadvertently entering into a dangerous or restricted area. Guard rails are commonly used in transportation infrastructure, construction sites, and various industrial settings to enhance safety.
Guard rails play a crucial role in maintaining safety and preventing accidents in various settings. Their design and specifications may vary based on regional standards, the type of roadway or area they protect, and the potential hazards they are meant to address.
55+ Years of Steel Excellence
Nationwide Delivery
Complete Steel Range
Serving Luzon Visayas, Mindanao
COMPREHENSIVE SYSTEM GUIDE
Our Guard Rail System Guide covers W-beam rail section dimensions, standard post spacing (2m and 4m), block-out configurations, Class A vs Class B selection criteria, end terminal types, and complete bill-of-materials for DPWH-compliant guardrail installation on Philippine highways and bridges.
- W-beam section dimensions and gauge—Class A 12-gauge and Class B 10-gauge cross-sections
- Standard post spacing and block-out sizing—2m post spacing for median, 4m for roadside
- Class A vs Class B selection guide—traffic speed, AADT, and barrier design criteria
- AASHTO M180 and DPWH standard compliance—Philippine national road safety specifications
- Complete system supply— rail + posts + block-outs + end terminals + all hardware
REGAN INDUSTRIAL SALES, INC.
GUARD RAIL SYSTEM GUIDE
AASHTO M180 · DPWH STANDARD| COMPONENT | CLASS A (12-GA) | CLASS B (10-GA) |
|---|---|---|
| Beam thickness | 2.67 mm | 3.43 mm |
| Section length | 12 ft / 25 ft | 12 ft / 25 ft |
| Yield strength | 310 MPa min. | 310 MPa min. |
| Beam height | 310 mm (12.25") | 310 mm (12.25") |
| Post type | W6×8.5 or W6×9 | W6×8.5 or W6×9 |
| Coating | Hot-dip galv. | Hot-dip galv. |
REGAN INDUSTRIAL SALES, INC. — EST. 1968
HYDRAULIC VIBRATORY PILE DRIVER
PICK UP AND DELIVERY PROCESS
From Our Warehouse to Your Site
Place Your Order
Tell us what you need and we'll prepare your order with technical precision.
Order Confirmation
We confirm availability, pricing, and delivery details for maximum transparency.
Pick Up or Prepare
Pick up at our strategic warehouse locations or we'll prepare for rapid transit.
Nationwide Delivery
We deliver safely and on time to your project site, no matter the scale.
Step 1 of 4: Place Your Order
PICK UP AND DELIVERY PROCESS
Pre-Delivery Information
DOWNLOAD PDF
Pick-Up Process
DOWNLOAD PDF
Delivery Process for Terms and Cash
DOWNLOAD PDFCommon Questions
FREQUENTLY ASKED QUESTIONS
Where are guard rails commonly installed?
Guard rails are commonly installed in transportation infrastructure, construction sites, and industrial facilities to prevent accidents and restrict access to hazardous areas. They serve as protective barriers along roads, bridges, loading zones, and work sites, helping improve safety by controlling movement and reducing risks.
Are guard rails available in different thicknesses and coatings?
Yes. Guard rails are available in various thicknesses and protective coatings to suit different project requirements. Manufacturers produce them in multiple steel thickness options and galvanized finishes, which enhance durability and corrosion resistance, especially for outdoor and high-exposure environments.
Can guard rails be customized for specific road or site requirements?
Yes, suppliers design them according to road types, hazard levels, and regulatory standards, ensuring proper fit, performance, and protection for both infrastructure and industrial applications.
Discuss Your Guard Rail Requirements
Share the guard rail specification for your road, site or facility, along with the quantity needed. We’ll review the required components with you and help confirm available options.
