Gabion

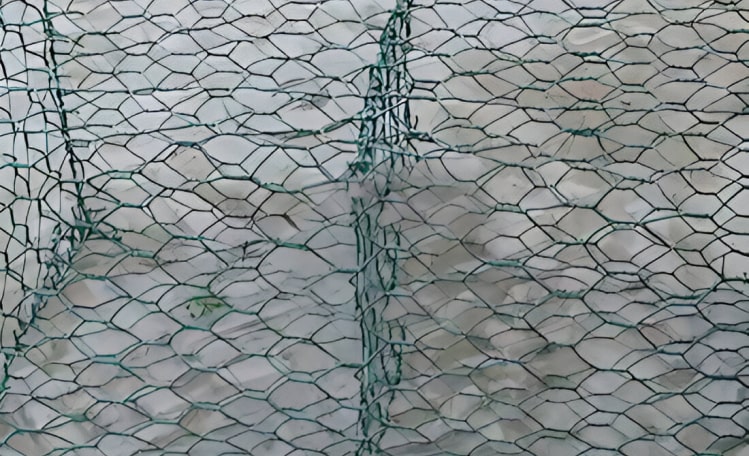

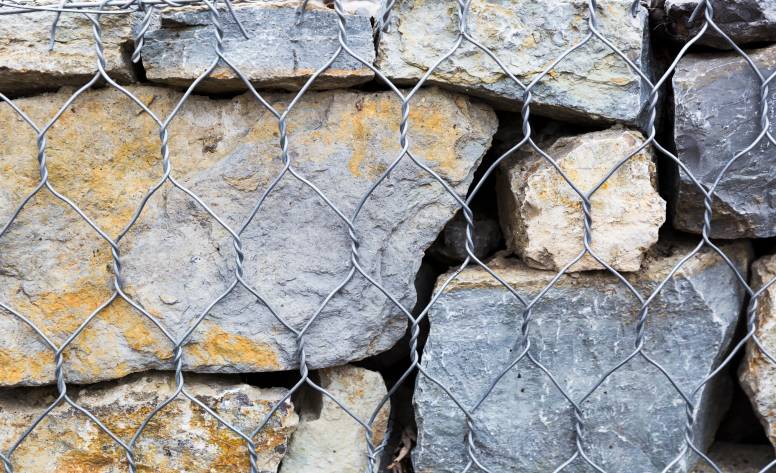

Gabions are wire baskets or cages filled with stones, rocks, or other materials. These structures are used in various civil engineering and landscaping applications for erosion control, slope stabilization, retaining walls, and other purposes.
Gabions are widely employed in civil engineering projects, especially in situations where a flexible and permeable solution for erosion control or retaining walls is needed. They provide an effective and environmentally friendly method for stabilizing soil and preventing erosion.
55+ Years of Steel Excellence
Nationwide Delivery
Complete Steel Range
Serving Luzon Visayas, Mindanao
COMPREHENSIVE EQUIPMENT GUIDE
Our Gabion Product Guide covers basket dimensions, wire specifications, mesh opening sizes, fill volume calculations, and design guidance for retaining wall, slope protection, and riverbank erosion control applications in Philippine terrain and climate conditions.
- Basket dimensions and wire specifications —1×1×1m to 4×1×1m, wire diameter 2.7–3.4mm
- Mesh opening sizes and fill volume—80×100mm and 60×80mm mesh, fill volume per unit
- Galvanized vs PVC-coated selection—coastal, aggressive, and submerged environment guidance
- BS EN 10223-3 and ASTM A975 standards— international double-twist wire mesh specifications
- Retaining wall and slope design guidance—height limits, batter, and geotextile requirements
REGAN INDUSTRIAL SALES, INC.
GABION SYSTEM GUIDE
AASHTO M180 · DPWH STANDARD| Size (L×W×H) | Mesh Opening | Wire Dia. |
|---|---|---|
| 1×1×1 m | 80×100 mm | 2.7 mm |
| 2×1×1 m | 80×100 mm | 2.7 mm |
| 3×1×1 m | 80×100 mm | 2.7 mm |
| 4×1×1 m | 80×100 mm | 2.7 mm |
| 2×1×0.5 m | 60×80 mm | 2.4 mm |
| Custom sizes | On request | 2.4–3.4 mm |
REGAN INDUSTRIAL SALES, INC. — EST. 1968
HYDRAULIC VIBRATORY PILE DRIVER
PICK UP AND DELIVERY PROCESS
From Our Warehouse to Your Site
Place Your Order
Tell us what you need and we'll prepare your order with technical precision.
Order Confirmation
We confirm availability, pricing, and delivery details for maximum transparency.
Pick Up or Prepare
Pick up at our strategic warehouse locations or we'll prepare for rapid transit.
Nationwide Delivery
We deliver safely and on time to your project site, no matter the scale.
Step 1 of 4: Place Your Order
PICK UP AND DELIVERY PROCESS
Pre-Delivery Information
DOWNLOAD PDF
Pick-Up Process
DOWNLOAD PDF
Delivery Process for Terms and Cash
DOWNLOAD PDFCommon Questions
FREQUENTLY ASKED QUESTIONS
What are gabions used for?
Gabions are used for erosion control, slope stabilization, and retaining structures in civil engineering projects. They function as wire mesh containers filled with stones, forming retaining walls, riverbank protection, seawalls, and drainage systems that help control soil movement and water flow.
Are gabions resistant to corrosion and weather conditions?
Yes, gabions are designed with coated steel wires, which provide strong resistance to corrosion and harsh weather conditions.
Galvanized, PVC-coated, or alloy-coated finishes help protect the structure from rust, moisture, and environmental exposure, ensuring long-term durability even in outdoor and marine environments.
When should gabions be used instead of other retaining systems?
Gabions should be used when projects require flexibility, drainage, and cost efficiency. They are ideal for areas with unstable soil, water flow, or erosion risks, as their permeable and flexible structure allows movement without failure while reducing hydrostatic pressure compared to rigid retaining systems.
Plan Your Gabion Order
Send us your gabion basket dimensions, wire specification and quantity. Tell us about the site application so we can help check options against your requirements for a quotation.
