Checkered Steel Plates

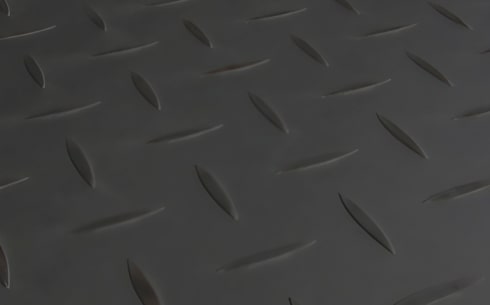

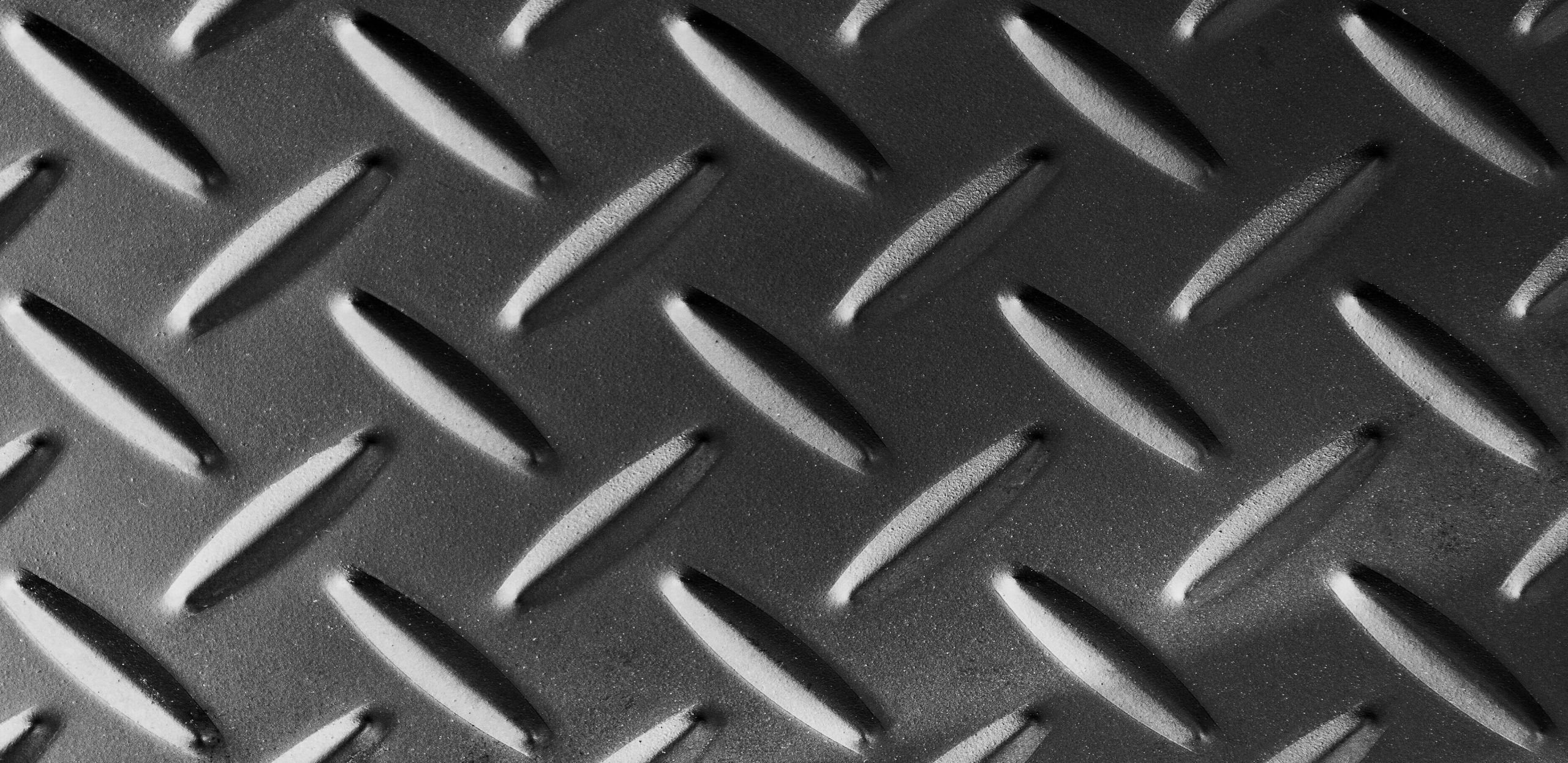

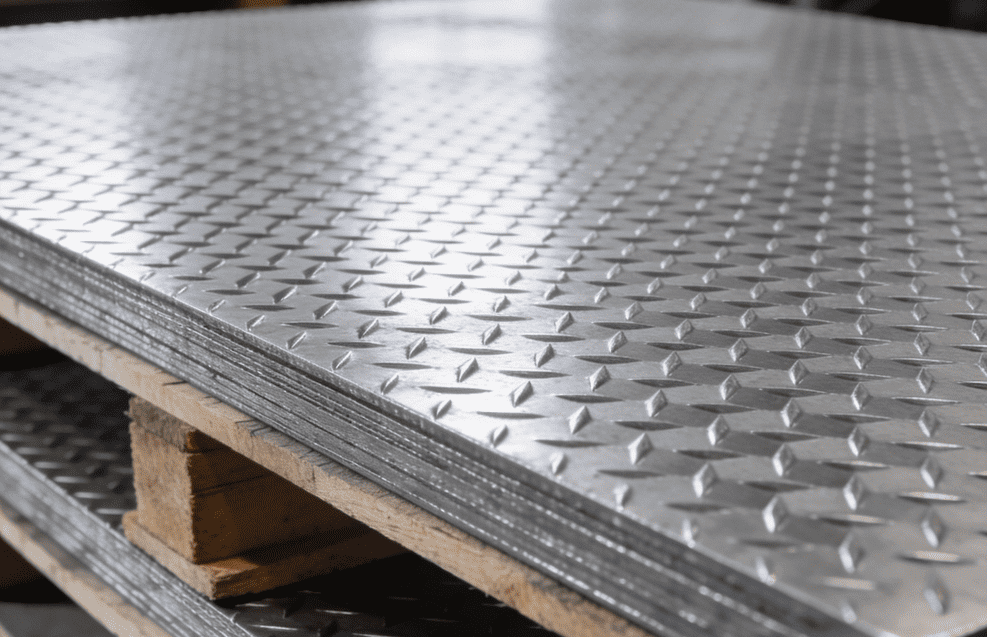

Checkered Steel Plates (also called tread plates or diamond plates) are flat steel sheets with a raised pattern of lines, diamonds, or other textured designs on one surface. The raised pattern provides anti-slip properties, added strength, and aesthetic appeal, making these plates ideal for industrial, commercial, and architectural applications.

They combine safety, durability, and versatility. The textured surface prevents slipping, while the solid steel construction provides long-lasting structural performance. They are ideal for environments that demand both strength and slip-resistant surfaces.

Steel Grades:

ASTM

Maximum Length/Width

4' x 8'

Lead Time

1 - 3 days

APPLICATIONS

Flooring for industrial facilities, factories, and warehouses

Stair treads and ramps

Walkways and catwalks

Truck beds and trailers

Decorative architectural features

Platforms and mezzanines

FREQUENTLY ASKED QUESTIONS

What are the advantages of using checkered steel plates?

Checkered steel plates offer enhanced slip resistance due to their raised pattern, making them ideal for walkways, ramps, and industrial flooring. They are also durable, load-resistant, and low-maintenance, making them suitable for high-traffic and heavy-duty environments.

What patterns are available on checkered steel plates?

Checkered steel plates are available in a variety of raised patterns designed for both slip resistance and visual appeal. Common options include diamond, five-bar (linear), lentil or teardrop, and hexagonal patterns, each offering different levels of grip and surface texture. Some plates may also feature round or mixed pattern designs, depending on the application.

Are checkered steel plates stronger than flat steel?

Checkered steel plates are not necessarily stronger than flat steel in terms of base material strength, as both are typically made from the same grade of steel. However, the raised pattern on checkered plates provides added rigidity and improved load distribution, making them more suitable for flooring and high-traffic applications where slip resistance and durability are important.
